Use range
1: Brand Name: SIJIE 2: Load capacity: From 2.5 ton to 50 tons 3: Screw diameter: From 30mm to 120mm 4: Gear ratio: 1:1, 2:1 with one shaft, two shaft, three shafts 5: Delivery Time: 20-25 working days after received the payment 6: Payment Terms: T/T, Western Union, Paypal, L/C etc 7: Warranty Period: 13 months
product details
Our bevel gear screw jacks offer higher transmission efficiency, greater speed, longer life and lower noise than other mechanical screw jacks.

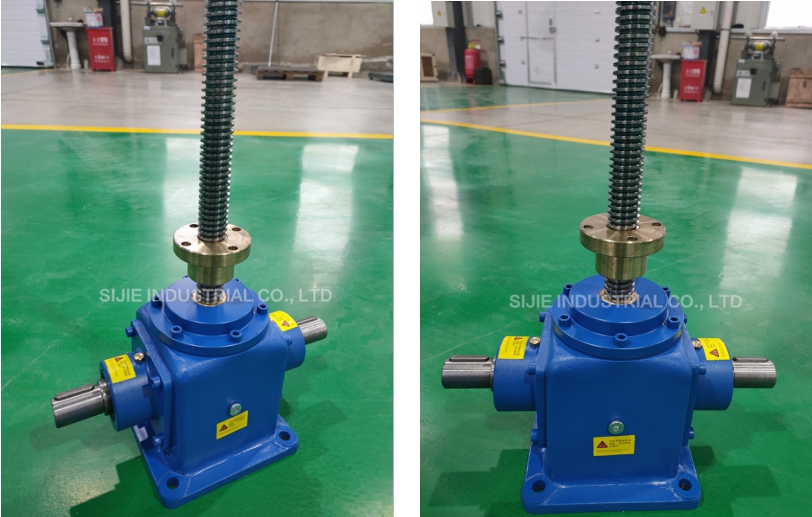

Bevel Gear Screw Jacks Pictures:
Bevel Gear Screw Jacks Specifications:
Model
SJSL-2.5T
SJSL-5T
SJSL-10T
SJSL-15T
SJSL-20T
SJSL-25T
Max. Static Load ( KN )
25
50
100
150
200
250
Lifting Screw ( mm )
Tr30x6
Tr40x7
Tr58x12
Tr58x12
Tr65x12
Tr90x16
Gear Ratio-H
1:1
1:1
1:1
1:1
1:1
1.5:1
Travel length ( mm ) per turn of worm shaft-H
6
7
12
12
12
10.7
Working Efficiency (%)-H
26
25
26
26
25
22
Gear Ratio-L
2:1
2:1
2:1
2:1
2:1
2.5:1
Travel length ( mm ) per turn of worm shaft-L
3
3.5
6
6
6
6.4
Working Efficiency (%)-H
26
25
26
26
25
22
Max. Permissible stroke ( mm )
1500
2000
2500
2500
3000
3500
Max. Stroke(mm) in Max. Compression load ( Unguided)
250
385
400
500
600
850
Max. Stroke(mm) in Max. Compression load ( guided)
400
770
800
1000
1200
1700
Max. Permissible torque(N.m) of worm shaft
H:92 L:46
H:232 L:116
H:730 L:365
H:1095 L:548
H:1528 L:764
H:2020 L:1212
Weight without stroke ( Kg )
42
78
112
112
148
265
Weight per 100mm screw and protective tube( Kg )
0.45
0.82
1.68
1.68
2.1
4.15
H: High gear ratio L: Slow gear ratio

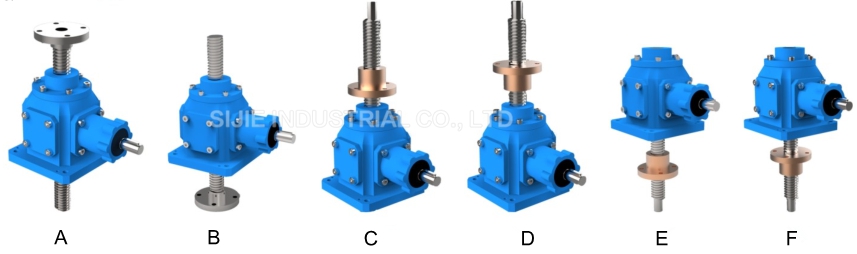

Screw Configuration & Mounting Orientation

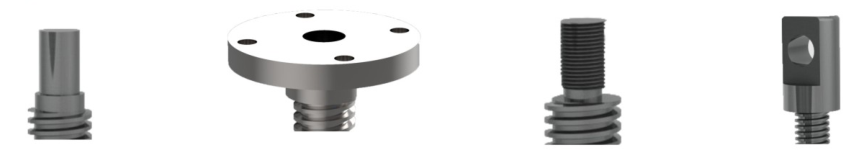

Screw Top End
Plain End Top Plate Thread End Clevis End
Bevel Gear Screw Jacks rotation
Bevel Gear Screw Jacks Bearing mounting
1L 2L 2L-1 3L 4L
