SJV140 Bevel Gearbox Quick information.
1. Gearbox Model: SJV140
2: Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3: Drive shaft available: 2 way, 3 way, 4 way.
4: Max. Permissible Speed 2000rpm, Max Permissible Power 29.9KW.
5: Working temperature: -40ºC~+50ºC, customized special Temperature.
6: Function: 90 degrees angle changes transmission directions
7: Gearing Type: Gearing Spiral
8: Gearbox Bearing type: Tapered Bearings

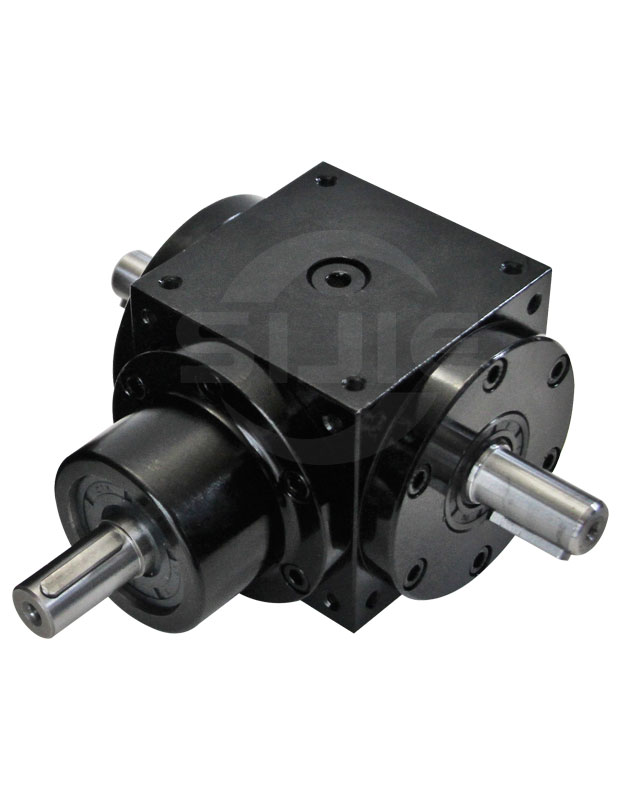

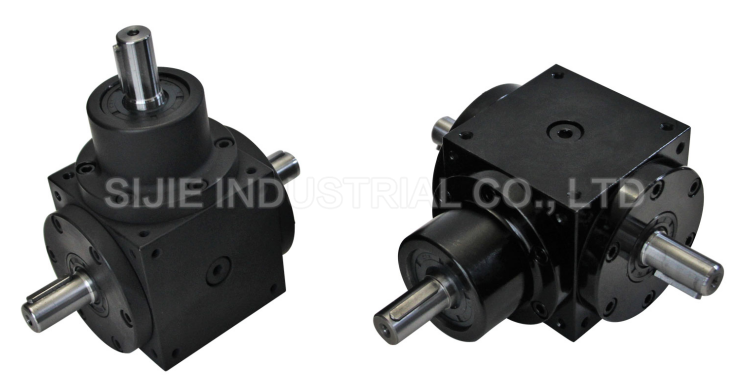

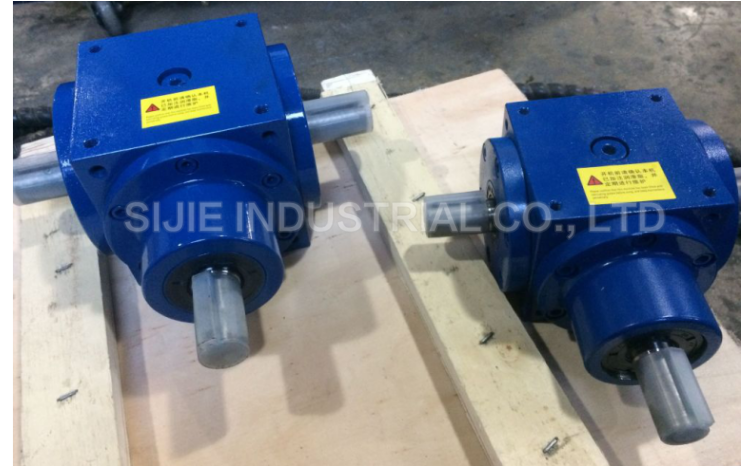

SJV140 Bevel Gearbox Pictures:
SJV140 Bevel Gearbox Specifications:
Gearbox
Model
SJV-140( 32mm shafts diameter)
Gearing Type
Gearing Spiral
Bearing type
Tapered
Bearings
Seal
double lip
Type of oil
N320 gear oil
Axial load
capacity
25KN
Overhung load
capacity
2.5KN
Noise factor
≤70 dB
Backlash
0.3mm
Shaft
tolerance
j6
Mounting hole distance tolerance
+/-0.1mm
All the
tolerances
+/-0.1mm
Warranty
1 year
Model
Input Speed (RPM)
Gear Ratio 1:1
Gear Ratio 2:1
Gear Ratio 3:1
Gear Ratio 4:1
Gear Ratio 5:1
Power
Torque
Power
Torque
Power
Torque
Power
Torque
Power
Torque
( KW )
( N.m )
( KW )
( N.m )
( KW )
( N.m )
( KW )
( N.m )
( KW )
( N.m )
SJV140
2000
29.9
128.6
14.1
133.3
10.1
136.8
6.8
125.3
5.05
115.2
1500
23.9
152.2
11.1
141.3
7.95
151.8
5.3
135
3.95
125.7
1000
17.2
164.3
7.85
149.9
5.6
160.4
3.75
143.3
2.75
131.3
750
13.4
170.6
6.2
157.9
4.4
168.1
2.95
150.3
2.1
133.7

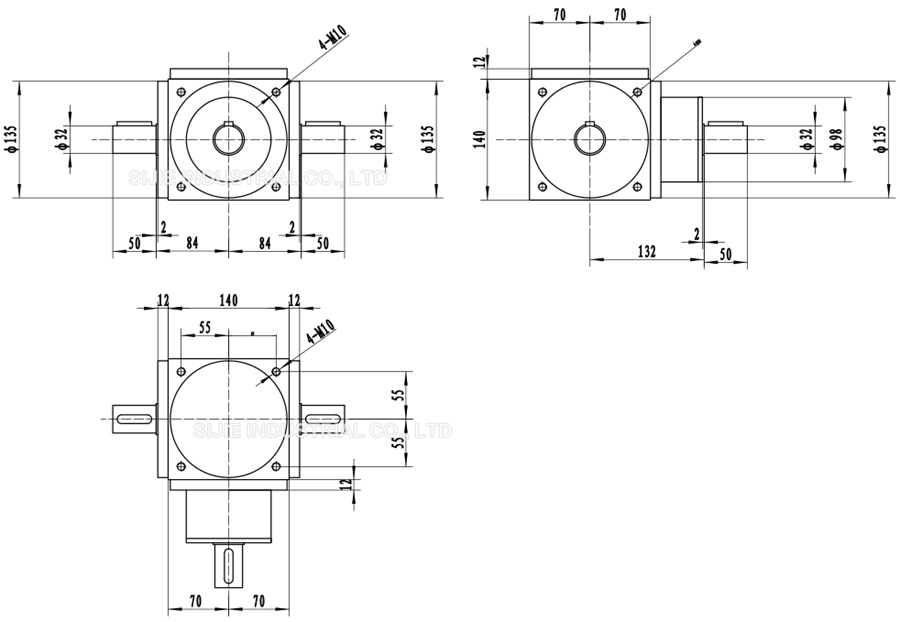

SJV140 Bevel Gearbox Dimensions:
SJV140 Bevel Gearbox Ordering Information:
SJV140 – 1:1 – 1500R – 1500R – I-LR – A
1 2 3 4 5 6
1: Gearbox model
Before selecting SJV140 model, please check
above SJV140 Bevel Gearbox Specifications.
2: Gear
Ratio
Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3 & 4. Input & Output RPM
|
Input speed |
1500rpm |
1000rpm |
750rpm |
500rpm |
250rpm |
50rpm |
|
Gear Ratio |
1:1 |
|||||
|
Output speed |
1500rpm |
1000rpm |
750rpm |
500rpm |
250rpm |
50rpm |
|
Gear Ratio |
1.5:1 |
|||||
|
Output speed |
1000rpm |
667rpm |
500rpm |
333rpm |
167rpm |
33rpm |
|
Gear Ratio |
2:1 |
|||||
|
Output speed |
750rpm |
500rpm |
375rpm |
250rpm |
125rpm |
25rpm |
|
Gear Ratio |
3:1 |
|||||
|
Output speed |
500rpm |
333rpm |
250rpm |
167rpm |
83rpm |
17rpm |
|
Gear Ratio |
4:1 |
|||||
|
Output speed |
375rpm |
250rpm |
187rpm |
125rpm |
62.5rpm |
12.5rpm |
|
Gear Ratio |
5:1 |
|||||
|
Output speed |
300rpm |
200rpm |
150rpm |
100rpm |
50rpm |
10rpm |

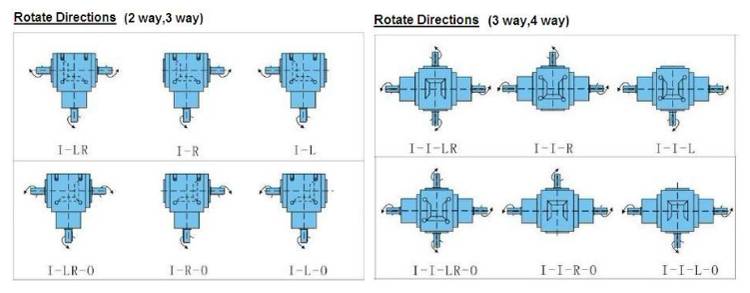

5: Rotate directions:

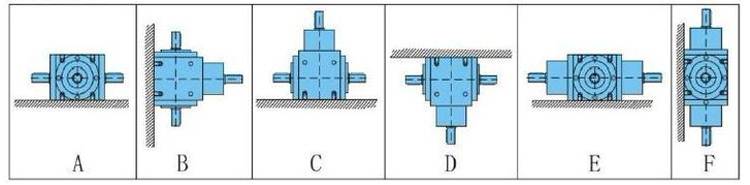

6: Installation:
