Use range
1: Brand Name: SIJIE 2: Model: SJV-170 (40mm Shaft Diameter) 3: Material: Cast iron, cast steel, stainless steel, aluminum are available. 4: Delivery Time: 12-15 working days after received the payment 5: Payment Terms: T/T, Western Union, Paypal, L/C etc 6: Warranty Period: 13 months
product details
SJV170 Bevel Gearbox Quick information.
1. Gearbox Model: SJV170
2: Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3: Drive shaft available: 2 way, 3 way, 4 way.
4: Max. Permissible Speed 2000rpm, Max Permissible Power 49.2KW.
5: Working temperature: -40ºC~+50ºC, customized special Temperature.
6: Function: 90 degrees angle changes transmission directions
7: Gearing Type: Gearing Spiral
8: Gearbox Bearing type: Tapered Bearings
9: Noise factor: ≤70 dB
10: SJV170 Shafts Diameter: 40mm

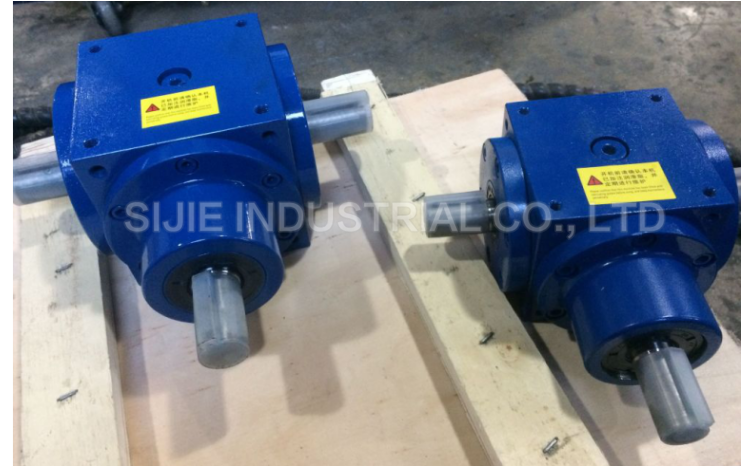

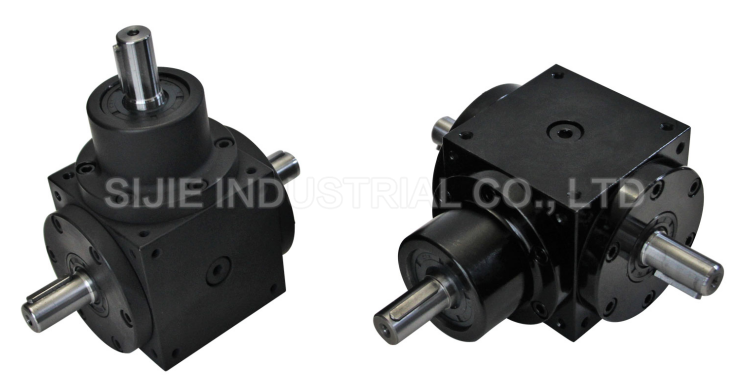

SJV170 Bevel Gearbox Pictures:
SJV170 Bevel Gearbox Specifications:
| Model | Input Speed (RPM) | Gear Ratio 1:1 | Gear Ratio 2:1 | Gear Ratio 3:1 | Gear Ratio 4:1 | Gear Ratio 5:1 | |||||
| Power | Torque | Power | Torque | Power | Torque | Power | Torque | Power | Torque | ||
| ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ( KW ) | ( N.m ) | ||
| SJV-170 | 2000 | 49.2 | 180.1 | 26.2 | 224.7 | 18.2 | 235.2 | 10.5 | 179.5 | 8.05 | 170.9 |
| 1500 | 39.3 | 250.2 | 20.8 | 264.9 | 14.4 | 275 | 8.4 | 213.9 | 6.45 | 205.3 | |
| 1000 | 28.8 | 275 | 14.9 | 284.6 | 10.1 | 289.4 | 5.9 | 225.4 | 4.5 | 214.9 | |
| 750 | 22.8 | 290.3 | 11.6 | 295.4 | 7.8 | 298 | 4.55 | 231.7 | 3.45 | 219.7 | |

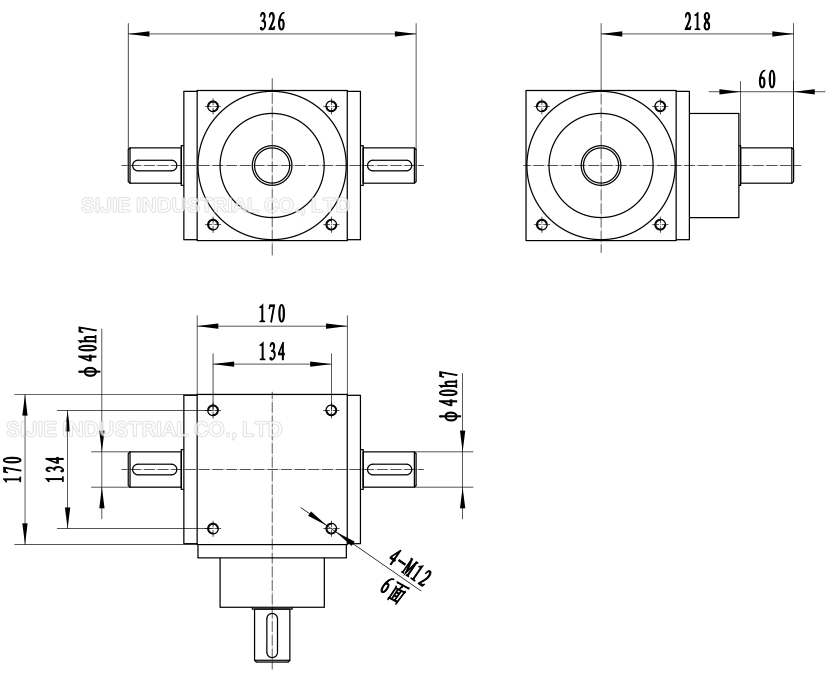

SJV170 Bevel Gearbox Dimensions:
SJV170 Bevel Gearbox Ordering Information:
SJV170 – 1:1 – 1500R – 1500R – I-LR – A
1 2 3 4 5 6
1: Gearbox model
Before selecting SJV170 model, please check above
SJV170 Bevel Gearbox Specifications.
2: Gear
Ratio
Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3 & 4. Input & Output RPM
|
Input speed |
1500rpm |
1000rpm |
750rpm |
500rpm |
250rpm |
50rpm |
|
Gear Ratio |
1:1 |
|||||
|
Output speed |
1500rpm |
1000rpm |
750rpm |
500rpm |
250rpm |
50rpm |
|
Gear Ratio |
1.5:1 |
|||||
|
Output speed |
1000rpm |
667rpm |
500rpm |
333rpm |
167rpm |
33rpm |
|
Gear Ratio |
2:1 |
|||||
|
Output speed |
750rpm |
500rpm |
375rpm |
250rpm |
125rpm |
25rpm |
|
Gear Ratio |
3:1 |
|||||
|
Output speed |
500rpm |
333rpm |
250rpm |
167rpm |
83rpm |
17rpm |
|
Gear Ratio |
4:1 |
|||||
|
Output speed |
375rpm |
250rpm |
187rpm |
125rpm |
62.5rpm |
12.5rpm |
|
Gear Ratio |
5:1 |
|||||
|
Output speed |
300rpm |
200rpm |
150rpm |
100rpm |
50rpm |
10rpm |
5: Rotate directions:
6: Installation:
